What are the six types of hydroponic systems?

1. Deep water culture systems

Deep water culture hydroponics are simply plants suspended in aerated water. Deep water culture systems, also known as a DWC system, are one of the easiest and most popular methods of hydroponics on the market. A DWC system dangles net pots holding plants over a deep reservoir of oxygen-rich nutrient solution. The plant’s roots are submerged in the solution, providing it with perpetual access to nutrition, water, and oxygen. Deep water culture is considered by some to be the purest form of hydroponics.
Since the root system is suspended in water at all times, proper water oxygenation is vital to the plant’s survival. If there is not enough oxygen supplied to the plant’s roots, the plant will drown in the solution. Add an air stone connected to an air pump at the bottom of the reservoir to supply oxygenation to the entire system. The bubbles from the air stone will also help circulate the nutrient solution.
It is very easy to assemble a deep water culture system at home or in a classroom without needing expensive hydroponics equipment. You can use a clean bucket or old aquarium to hold the solution and place a floating surface like styrofoam on top to house the net pots. Plants in DWC systems should only have their roots submerged in the solution. No part of the stem or vegetation should be underwater. You can even leave about an inch and a half of the roots above the waterline. The air stone bubbles will pop out of the surface and splash onto the exposed roots, so they will not be at risk of drying out.

What are the advantages of deep water culture systems?

  • Low maintenance: Once a DWC system is set up, there’s very little maintenance required. Just replenish the nutrient solution when needed and make sure your pump is running oxygen to the air stone. The nutrient solution typically only needs replenishing every 2-3 weeks, but this does depend on the size of your plants.
  • DIY appeal: Unlike many hydroponic systems, deep water culture systems can be made cheaply and easily at home, with a quick run to your pet store and local nursery to pick up the air pump and nutrients.

What are the disadvantages of deep water culture systems?

  • Limitations: Deep water culture systems are adept at growing herbs and lettuce but they struggle with larger and more slow-growing plants. DWC systems are not ideal for anything that flowers. However, with some extra work, you can grow plants like tomatoes, bell peppers, and squash in a DWC system.
  • Temperature control: It’s important that your water solution does not exceed 68°F and does not go below 60°F. In a DWC system, the water is static and not recirculating, so it can be more difficult to regulate temperature.

2. Wick systems

In a wick system, plants are nestled in growing media on a tray that sits on top of a reservoir. This reservoir houses a water solution with dissolved nutrients. Wicks travel from the reservoir to the growing tray. Water and nutrients flow up the wick and saturate the growing media around the root systems of the plants. These wicks can be made of material as simple as rope, string, or felt. Wick systems are by far the most simple form of hydroponics. Wick systems are passive hydroponics - meaning they don’t require mechanical parts like pumps to function. This makes it ideal for situations where electricity is either unreliable or unavailable.
Wicks systems work by a process called capillary action. The wick absorbs the water it’s immersed in like a sponge, and when it comes in contact with the porous growing media, it transfers the nutrient solution. Wick system hydroponics only work if accompanied by growing media that is able to facilitate nutrient and water transference. Coco coir (fibers from the outer husks of coconuts) have excellent moisture retention and the added benefit of being pH neutral. Perlite is also pH neutral and extremely porous, making it ideal for wicking systems. Vermiculite is also very porous, and also possesses a high cation-exchange capacity. This means it can store nutrients for later use. These three growing media are the most suitable for hydroponic wick systems.
Wick systems work quite slowly compared to other hydroponic systems, which does limit what is practical to grow with them. You’ll want to make sure for every plant in the growing tray you have at least one wick running from the reservoir. These wicks should be placed close to the root system of the plant. Though capable of functioning with aeration, many people do choose to add an air stone and air pump to the wick system’s reservoir. This adds extra oxygenation to the hydroponic system.

What are the advantages of a wick system?

  • Simplicity: A wick system can be set-up by anyone and does not demand excessive attention after it is running. The wicks will constantly supply your plants with water, so there is no risk of them drying out. Furthermore, plants like lettuce will flourish in a wick system, providing a great return on your hands-free investment
  • Space-efficient: Wick systems are unobtrusive and can be installed anywhere, seeing as they do not need electricity to run. It is a perfect system for educators, beginners or anyone interested in exploring hydroponics.

What are the disadvantages of a wick system?

  • Limitations: Lettuce and herbs like rosemary, mint, and basil are fast-growing and do not demand large quantities of water. Tomatoes, on the other hand, will struggle to thrive in a wick system because of their high demand for nutrients and hydration. Other plants cannot thrive in an environment that is perpetually moist. Root vegetables like carrots and turnips will not succeed in a wick system.
  • Susceptible to rot: A hydroponic wick system is always humid and damp. This creates the risk that fungal outbreaks and rot can develop in the organic growing media and on the roots of your plants.

3. Nutrient film technique systems

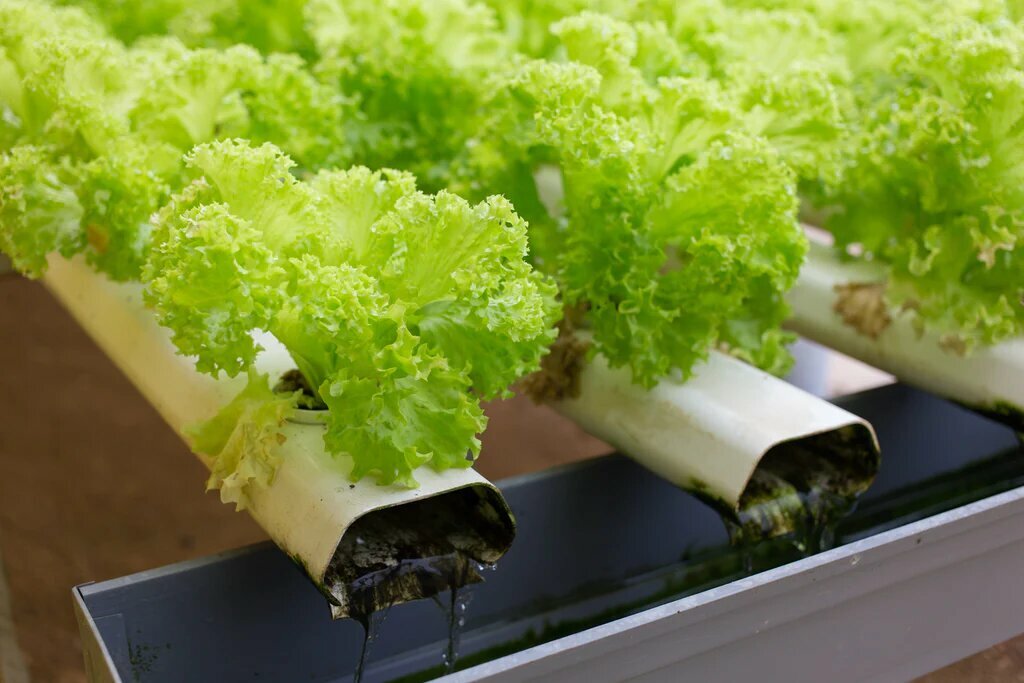

Nutrient film technique (NFT) systems suspend plants above a stream of continuously flowing nutrient solution that washes over the ends of the plant’s root systems. The channels holding the plants are tilted, allowing water to run down the length of the grow tray before draining into the reservoir below. The water in the reservoir is then aerated via air stone. A submersible pump then pumps the nutrient-rich water out of the reservoir and back to the top of the channel. The nutrient film technique is a recirculating hydroponic system.
Unlike with deep water culture hydroponics, the roots of the plants in an NFT system are not immersed in water. Instead, the stream (or “film”) only flows over the ends of their roots. The roots’ tips will wick the moisture up into the plant, while the exposed root system is given plenty of access to oxygen. The bottoms of the channels are grooved, so the shallow film can pass over the root tips with ease. This also prevents water from pooling or damming up against the root systems.
Even though nutrient film technique systems are constantly recycling water, it is wise to drain the reservoir and replenish the nutrient solution every week or so. This ensures your plants are being delivered ample nutrition. NFT channels must be angled at a gradual slope. If it’s too steep, the water will rush down the channel without properly nourishing the plants. If too much water is being pumped through the channel, the system will overflow and the plants can drown. NFT hydroponics are popular commercial systems, as they can support several plants per channel and can easily be mass-produced. Nutrient film technique systems are best suited for lightweight plants, like mustard greens, kale, lettuce, spinach as well as fruits like strawberries. Heavier fruiting plants like tomatoes and cucumbers will require trellises to support the excess weight.

What are the advantages of a nutrient film technique system?

  • Low consumption: Since NFT hydroponics recirculate the water they do not demand large quantities of water or nutrients to function. The constant flow also makes it harder for salts to accumulate on the plant's roots. Nutrient film technique systems also don’t require growing media, so you are saved the expense of purchasing media and the hassle of replacing it.
  • Modular design: Nutrient film technique systems are perfect for large-scale and commercial endeavors. Once you have one channel set up and functioning, it is very easy to expand. You can fill your greenhouse with multiple channels supporting different crops. It’s a good idea to feed each channel with a separate reservoir. This way, if pump failure occurs or disease spreads in the water, you will not lose your entire operation.

What are the disadvantages of a nutrient film technique system?

  • Pump failure: If the pump fails and the channel is no longer circulating the nutrient film, your plants will dry out. In a matter of hours, your entire crop can perish if it is not being supplied with water. Maintaining an NFT hydroponic system does require vigilance. You will want to diligently observe the performance of your pump.
  • Overcrowding: If the plants are spaced too close together or the root growth is too proliferate, the channel can become clogged. If the channel is obstructed by roots, water will be unable to flow and your plants will starve. This is especially true of the plants at the bottom of the channel. If the plants at the end ever seem to be underperforming compared to the rest of the channel, consider removing some plants or switching to a smaller unit.

4. Ebb and flow systems

Ebb and flow hydroponics work by flooding a grow bed with a nutrient solution from a reservoir below. The submersible pump in the reservoir is equipped with a timer. When the timer starts, the pump fills the grow bed with the water and nutrients. When the timer stops, gravity slowly drains the water out of the grow bed and flushes it back into the reservoir. The system is equipped with an overflow tube to ensure flooding doesn’t surpass a certain level and damage the stalks and fruits of the plants. Unlike the previous systems mentioned, the plants in an ebb and flow system are not constantly exposed to water. While the grow bed is flooded, the plants drink up the nutrient solution through their root systems. When the water ebbs and the grow bed empties, the roots dry out. The dry roots then oxygenate in the interval before the next flood. The length of time between floods is dictated by the size of your grow bed and the size of your plants.
Ebb and flow systems (also called flood and drain systems) are one of the most popular hydroponic growing methods. The abundance of oxygen and nutrition the plants are supplied with encourages quick and vigorous growth. The ebb and flow system is easily customizable and versatile. The grow bed can be filled with an assortment of net pots and a variety of fruits and vegetables. Perhaps more than any other hydroponic system, the ebb and flow system allows you to experiment with your plants and media.
Ebb and flow systems can accommodate almost any type of vegetation. Your primary limitation is the size and depth of your grow tray. Root vegetables will require a much deeper bed than lettuce or strawberries. Tomatoes, peas, beans, cucumbers, carrots, and peppers are all popular ebb and flow crops. In fact, you can even attach trellises directly to the grow bed. “Grow rocks” and expanded clay pebbles (hydroton) are some of the most popular growing media in ebb and flow hydroponics. These are cleanable and reusable, lightweight, and while they do retain moisture they will also drain. This is an important quality in ebb and flow systems.

What are the advantages of an ebb and flow system?

  • Versatility: With an ebb and flow system, you can grow much larger plants than in most other hydroponic systems. Fruits, flowers, and vegetables alike respond very well to ebb and flow hydroponics. If you’ve taken care to provide your plants with the appropriate sized grow bed and nutrition, you will see bountiful yield.
  • DIY appeal: There are hundreds of ways to construct your own ebb and flow hydroponic system at home. A visit to the hardware store and pet store will provide you with all the supplies you need to construct an ebb and flow system. Though more expensive to set up than other DIY systems like wick and deep water culture, ebb and flow systems sustain a much broader scope of plant life than they can.

What are the disadvantages of an ebb and flow system?

  • Pump failure: Like any hydroponic system reliant on a pump, if the pump ceases to work, your plants will die. You do have to monitor your ebb and flow system to ensure that the system’s performance is not compromising the health of your plants. If the water is rushing in and out too fast, your plants will not receive an adequate amount of water and nutrients.
  • Rot & disease: Sanitation and maintenance are essential to an ebb and flow system. If the bed is not draining properly, root diseases and rot can set in. A dirty ebb and flow system can grow mold and attract insects. If you neglect cleanliness, your crops will suffer. Additionally, some plants do not respond well to the rapid pH change that occurs as a result of the flooding and draining extremes.

5. Drip systems

In a hydroponic drip system, the aerated and nutrient-rich reservoir pumps solution through a network of tubes to individual plants. This solution is dripped slowly into the growing media surrounding the root system, keeping the plants moist and well-nourished. Drip systems are the most popular and widespread method of hydroponics, especially among commercial growers. Drip systems can be individual plants or massive irrigation operations.
There are two configurations of drip system hydroponics: recovery and non-recovery. In recovery systems, more popular with smaller, at-home growers, the excess water is drained from the grow bed back into the reservoir to be recirculated during the next drip cycle. In non-recovery systems, the excess water drains out of the growing media and runs to waste. This method is more popular among commercial growers. Though non-recovery drip systems can sound wasteful, large-scale growers are very conservative with water usage. These drip systems are designed only to deliver precisely the amount of solution required to keep the growing media around the plant dampened. Non-recovery drip systems employ elaborate timers and feeding schedules to keep waste to a minimum.
If you are growing plants in a recovery drip system, you will need to be attuned to the fluctuations in the pH of the nutrient solution. This is true of any system where wastewater re-circulates into the reservoir. Plants will deplete the nutrient content of the solution as well as alter the pH balance, so the grower will need to monitor and adjust the solution reservoir more than they would need to in a non-recovery system. Growing media can also become oversaturated with nutrients, so they will need to be washed and replaced periodically.

What are the advantages of a drip system?

  • Variety of plant options: A drip system can support much larger plants than most other hydroponic systems. This is one of the reasons it is so appealing to commercial growers. Melons, pumpkins, onions, and zucchinis can all be amply supported by a properly sized drip system. Drip systems hold greater quantities of growing media than other systems, allowing them to support the larger root systems of these plants. Drip systems work best with slow draining media, like rockwool, coco coir, and peat moss.
  • Scale: Drip systems can easily support large-scale hydroponics operations. If a grower desires to add more plants, new tubing can be connected to a reservoir and divert solution to the new vegetation. New crops can be introduced to an existing drip system, as additional reservoirs can be added with differing timer schedules tailored to fit the needs of the new plants. This is another factor that makes drip systems popular commercial hydroponics

What are the disadvantages of a drip system?

  • Maintenance: If you a growing plants using a non-recovery drip system at home, there is a significant amount of maintenance involved. You’ll need to consistently monitor pH and nutrient levels in your solution, draining and replacing if necessary. Recovery systems lines can also become clogged by debris and plant matter, so you will need to regularly wash and flush delivery lines.
  • Complexity: Drip systems can easily become elaborate and complex undertakings. This matters less for professional hydroponics, but it is not the most ideal system for home growers. There are many much simpler systems, like ebb and flow, that lend themselves better to at-home hydroponics.

6. Aeroponics

Aeroponics systems suspend plants in the air and expose the naked roots to a nutrient-filled mist. Aeroponics systems are enclosed frameworks, like cubes or towers, that can hold a multitude of plants at once. Water and nutrients are stored in a reservoir, and then pumped to a nozzle that atomizes the solution and distributes it as a fine mist. The mist is usually released from the top of the tower, allowing it to cascade down the chamber. Some aeroponics continuously mist the plant’s roots, much like NFT systems expose the roots to the nutrient film at all times. Others function more like the ebb and flow system, spraying the roots with mist in intervals. Aeroponics do not need substrate media to survive. The root’s constant exposure to air allows them to drink in oxygen and grow at an accelerated rate.
Aeroponics systems use less water than any other form of hydroponics. In fact, it takes 95% less water to grow a crop aeroponically than in an irrigated field. Their vertical structure is designed to take up minimal room and allows for numerous towers to be housed in a single location. With aeroponics, great yields can be produced even in confined spaces. Furthermore, because of their maximized exposure to oxygen, aeroponic plants grow faster than other hydroponically grown plants.
Aeroponics allow for simple harvesting year-round. Vine plants and nightshades like tomatoes, bell peppers, and eggplants all perform well in an aeroponic environment. Lettuce, baby greens, herbs, watermelons, strawberries, and ginger all also flourish. However, fruiting trees are too large and heavy to be grown aeroponically, and underground plants with extensive root systems like carrots and potatoes cannot be grown.

What are the advantages of an aeroponics system?

  • Oxygen surplus: The surplus of oxygen taken in by the bare roots supercharges the plant’s growth. Aeroponics are not only the most eco-friendly hydroponic system, they are also among the highest performing. They are versatile, customizable systems that reliably produce high-quality results.
  • Mobility: Aeroponic towers and trays can be easily transported from one location to another without disrupting the plant’s growth. During the transportation process, you will want to hand-mist the roots to prevent them from drying out. Additionally, aeroponic systems are designed to be ergonomic and maximize space. Aeroponics allow you to grow plants in greater densities than other hydroponics systems.

What are the disadvantages of an aeroponics system?

  • Expensive: Aeroponics do have a higher initial cost than other hydroponic systems. To set up a fully functional system complete with reservoirs, timers, and pumps can cost thousands of dollars. It is possible to construct a DIY aeroponics system for much less, but it is a much harder undertaking than a DIY deep water culture or wick system.
  • Maintenance Aeroponics systems maintain a delicate balance and, if disrupted, the results are disastrous for your plants. If your timer doesn’t go off or a pump fails, you risk losing your entire crop unless you mist the roots by hand. You will need to regularly clean the root chamber to prevent root disease from compromising your plants. Generally speaking, aeroponic systems do require more technique to succeed than other systems.
